Heating & air conditioning - cooler piping for Camry CV20RG

Click on the part subgroup below to get genuine part numbers.

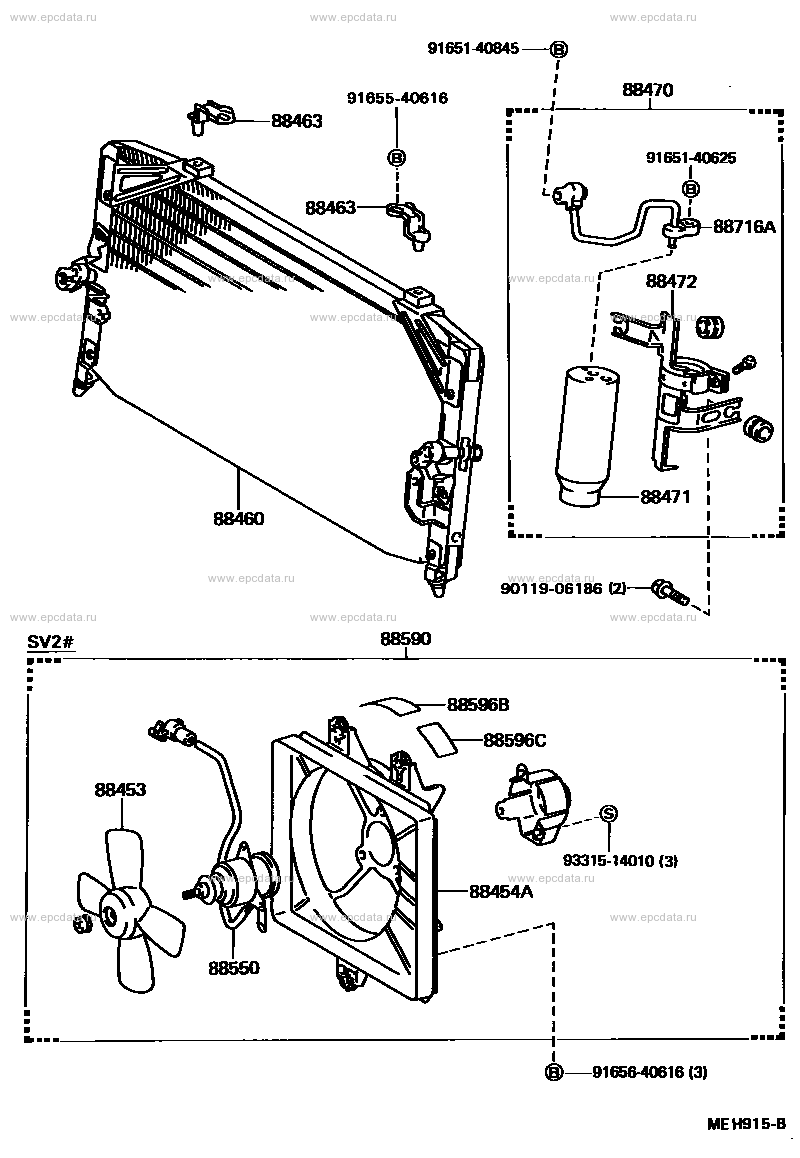

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9165140845 ** Std Part 88470 RECEIVER AND DRYER ASSY, COOLER 9165540616 ** Std Part 88463 BRACKET, COOLER CONDENSER, NO.1 9165140625 ** Std Part 88716A PIPE, COOLER REFRIGERANT LIQUID, A 88472 BRACKET, RECEIVER TANK, NO.1 88471 TANK, RECEIVER AIR CONDITIONER 88460 CONDENSER ASSY, COOLER 9011906186 ** Std Part 88590 BLOWER ASSY, W/SHROUD 88596B PLATE, CAUTION, NO.1 88596C PLATE, CAUTION, NO.2 88453 FAN, COOLING (FOR CONDENSER) 9331514010 ** Std Part 88454A SHROUD, FAN 88550 MOTOR ASSY, BLOWER (FOR CONDENSER) 9165640616 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9165160835 ** Std Part 9165540616 ** Std Part 88712 HOSE, COOLER REFRIGERANT SUCTION, NO.1 9165140625 ** Std Part 88711 HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88375A CAP, SERVICE VALVE (FOR COOLER PIPE) 88645H SWITCH, PRESSURE NO.1 88470B BOLT, FUSE 88716E PIPE, COOLER REFRIGERANT LIQUID, E 88716B PIPE, COOLER REFRIGERANT LIQUID, B 88710 TUBE ASSY, AIR CONDITIONER 9165140845 ** Std Part 8871832140 ** Std Part 88717A PIPE, COOLER REFRIGERANT SUCTION, A 8871832150 ** Std Part 88717B PIPE, COOLER REFRIGERANT SUCTION, B 8871832160 ** Std Part

Camry CV20RG
