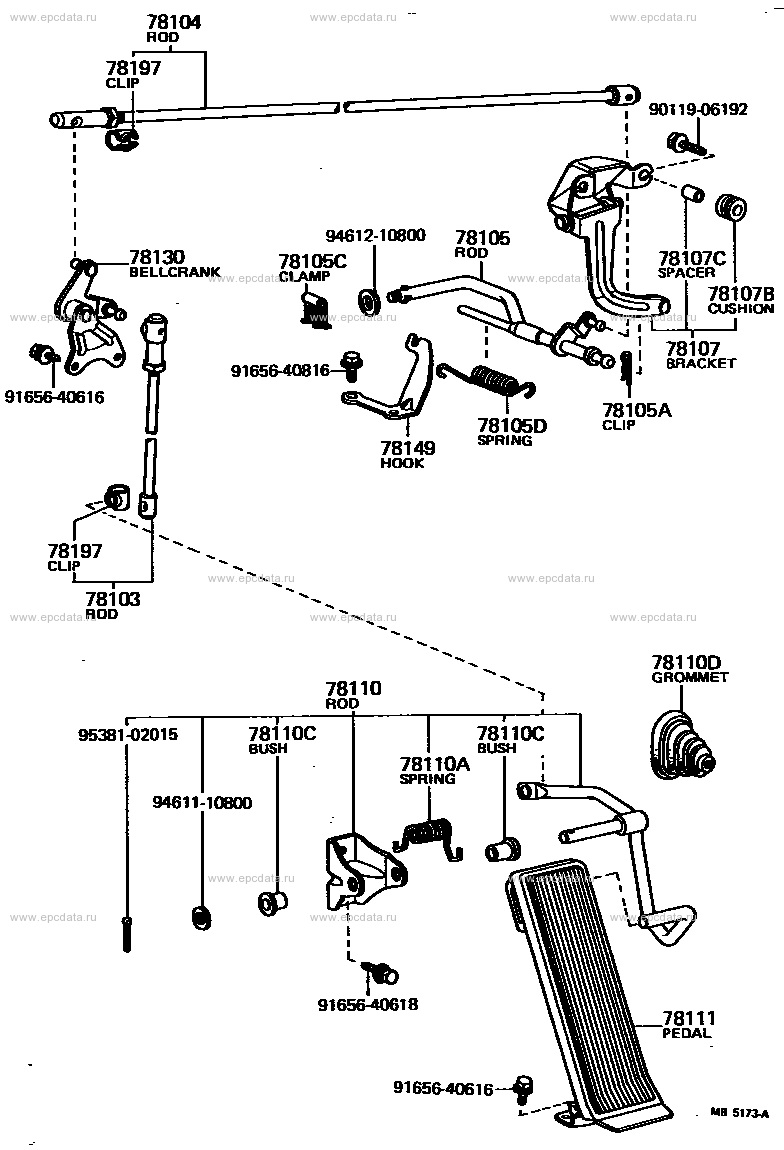

Click part number in the scheme or in the list:
78104 ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78197 CLIP, ACCELERATOR JOINT BALL
9011906192 ** Std Part
9461210800 ** Std Part
78105 ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78130 BELLCRANK ASSY, ACCELERATOR
78107C SPACER (FOR ACCELERATOR TORQUE ROD BRACKET)
78105C CLAMP (FOR ACCELERATOR TORQUE ROD)
78107B CUSHION (FOR ACCELERATOR TORQUE ROD BRACKET)
78107 BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
9165640816 ** Std Part
9165640616 ** Std Part
78105A CLIP (FOR ACCELERATOR TORQUE ROD)
78105D SPRING (FOR ACCELERATOR TORQUE ROD)
78149 HOOK, ACCELERATOR TORQUE ROD SPRING
78103 ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78110D GROMMET (FOR ACCELERATOR PEDAL ROD)
78110 ROD ASSY, ACCELERATOR PEDAL
78110C BUSH (FOR ACCELERATOR PEDAL ROD)
9538102015 ** Std Part
78110A SPRING (FOR ACCELERATOR PEDAL ROD)
9461110800 ** Std Part
9165640618 ** Std Part
78111 PEDAL, ACCELERATOR |
