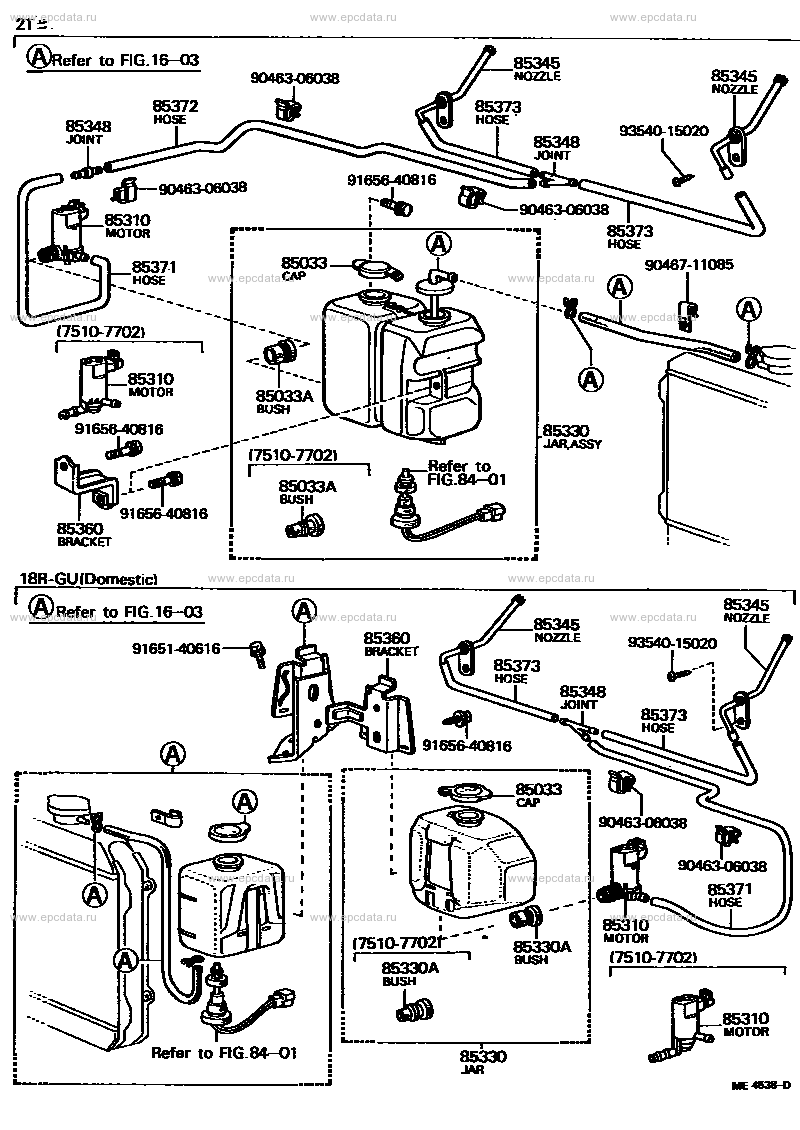

Click part number in the scheme or in the list:
** 16-03
85345 NOZZLE, WINDSHIELD WASHER
9046306038 ** Std Part
85372 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85373 HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85348 JOINT, WINDSHIELD WASHER HOSE, NO.1
9354015020 ** Std Part
9165640816 ** Std Part
85310 MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85371 HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85033 CAP ASSY, WINDSHIELD WASHER
9046711085 ** Std Part
85033A CAP SUB-ASSY, WASHER
85330 JAR ASSY, WINDSHIELD WASHER
** 84-01
85360 BRACKET ASSY, WINDSHIELD WASHER
9165140616 ** Std Part
85330A BUSH, WINDSHIELD WASHER JAR |
