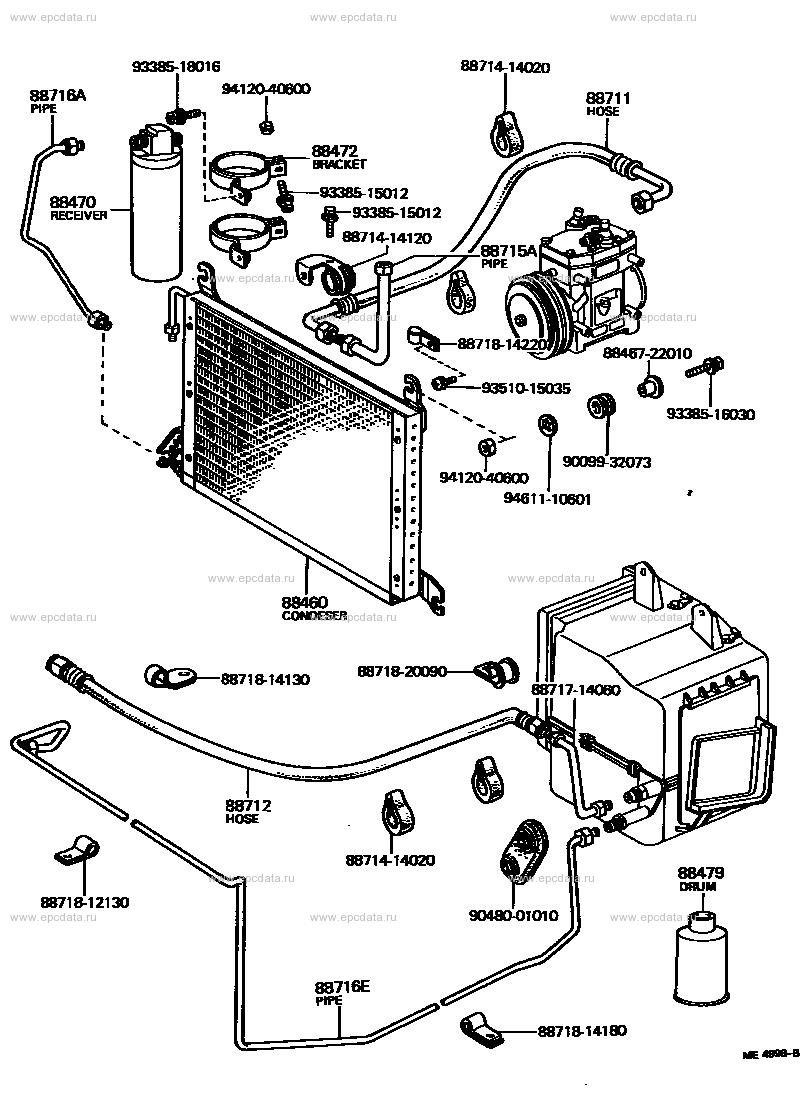

Click part number in the scheme or in the list:
8871414020 ** Std Part
9338518016 ** Std Part
9412040600 ** Std Part
88716A PIPE, COOLER REFRIGERANT LIQUID, A
88711 HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88472 BRACKET, RECEIVER TANK, NO.1
9338515012 ** Std Part
88470 RECEIVER AND DRYER ASSY, COOLER
9971414120 ** Std Part
88715A PIPE, COOLER REFRIGERANT DISCHARGE, A
8871814220 ** Std Part
8846722010 ** Std Part
9351015035 ** Std Part
9338516030 ** Std Part
9009932073 ** Std Part
9461110601 ** Std Part
88460 CONDENSER ASSY, COOLER
8871820090 ** Std Part
8871814130 ** Std Part
8871714060 ** Std Part
88712 HOSE, COOLER REFRIGERANT SUCTION, NO.1
88479 FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
8871812130 ** Std Part
9048001010 ** Std Part
88716E PIPE, COOLER REFRIGERANT LIQUID, E
8871814180 ** Std Part |
