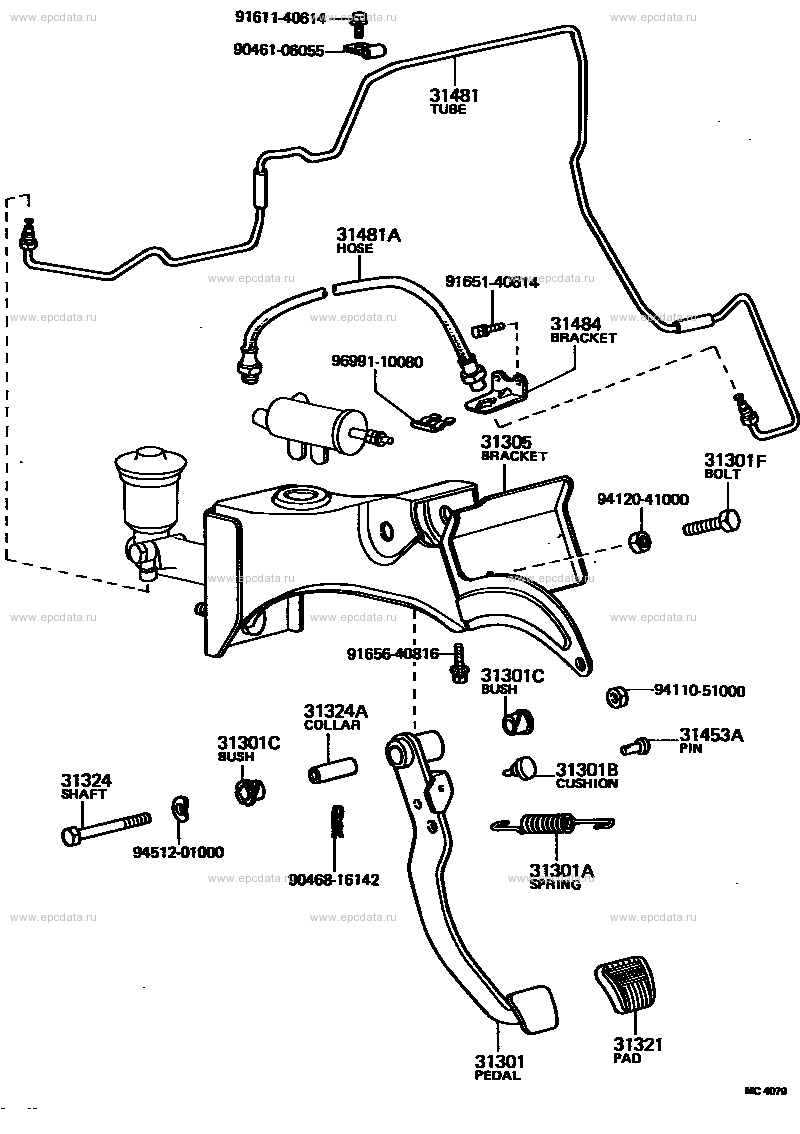

Click part number in the scheme or in the list:
9161140614 ** Std Part
9046106055 ** Std Part
31481 TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481A HOSE, CLUTCH, NO.1
9165140614 ** Std Part
31484 BRACKET, FLEXIBLE HOSE (FOR CLUTCH)
9699110080 ** Std Part
31305 BRACKET SUB-ASSY, CLUTCH PEDAL
31301F BOLT (FOR CLUTCH PEDAL STOPPER)
9412041000 ** Std Part
9165640816 ** Std Part
31301C BUSH (FOR CLUTCH PEDAL)
9411051000 ** Std Part
31324A COLLAR, CLUTCH PEDAL SHAFT
31453A PIN, W/HOLE (FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31301B CUSHION, NO.1 (FOR CLUTCH PEDAL)
31324 SHAFT, CLUTCH PEDAL
9451201000 ** Std Part
31301A SPRING (FOR CLUTCH PEDAL)
9046816142 ** Std Part
31321 PAD, CLUTCH PEDAL
31301 PEDAL SUB-ASSY, CLUTCH |
