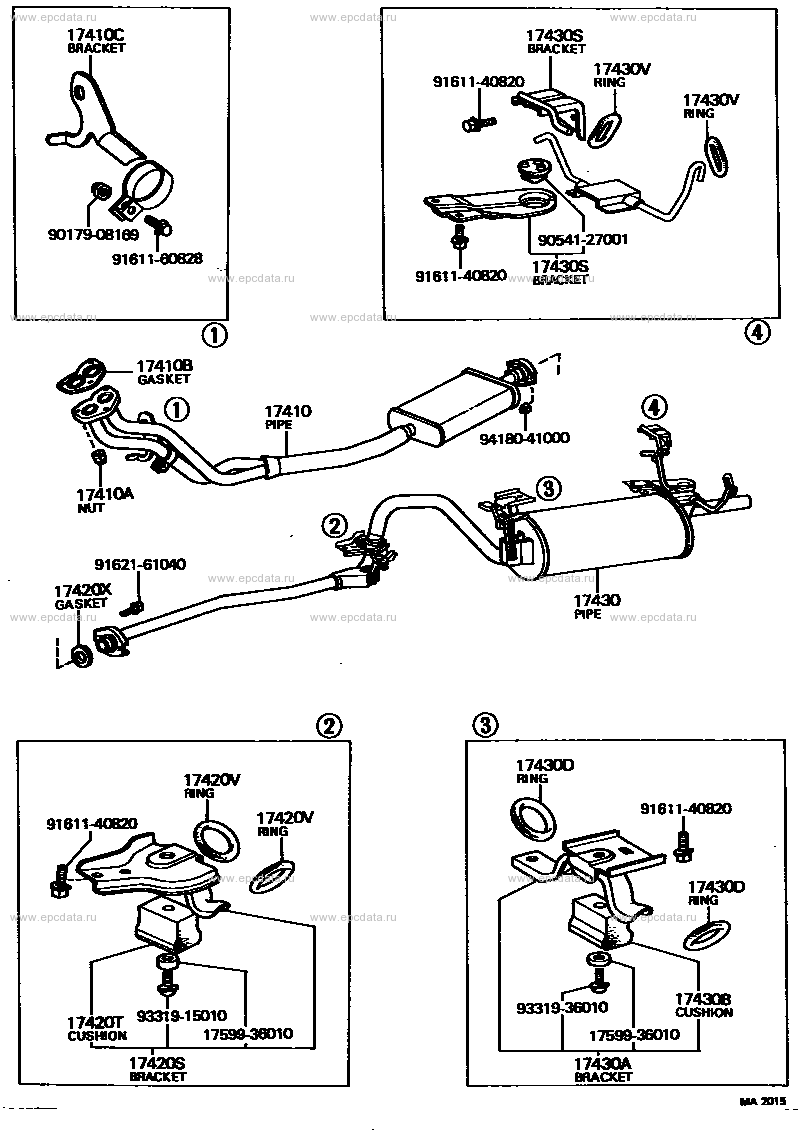

Click part number in the scheme or in the list:
17410C BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17430S BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17430V BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
9161140820 ** Std Part
9017908169 ** Std Part
9054127001 ** Std Part
9161160828 ** Std Part
17410B GASKET, EXHAUST PIPE
17410 PIPE ASSY, EXHAUST, FRONT
9418041000 ** Std Part
17410A NUT, EXHAUST PIPE SET STUD BOLT
9162161040 ** Std Part
17420X GASKET, EXHAUST PIPE (FOR CENTER)
17430 PIPE ASSY, EXHAUST, TAIL
17430D BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17420V BOLT OR RING, EXHAUST PIPE CENTER (FOR REAR)
17430B CUSHION, EXHAUST TAIL PIPE (FOR FRONT)
9331936010 ** Std Part
9331915010 ** Std Part
17420T CUSHION, EXHAUST PIPE CENTER (FOR REAR)
1759936010 ** Std Part
17420S BRACKET, EXHAUST PIPE CENTER (FOR REAR)
17430A BRACKET, EXHAUST TAIL PIPE (FOR FRONT) |
