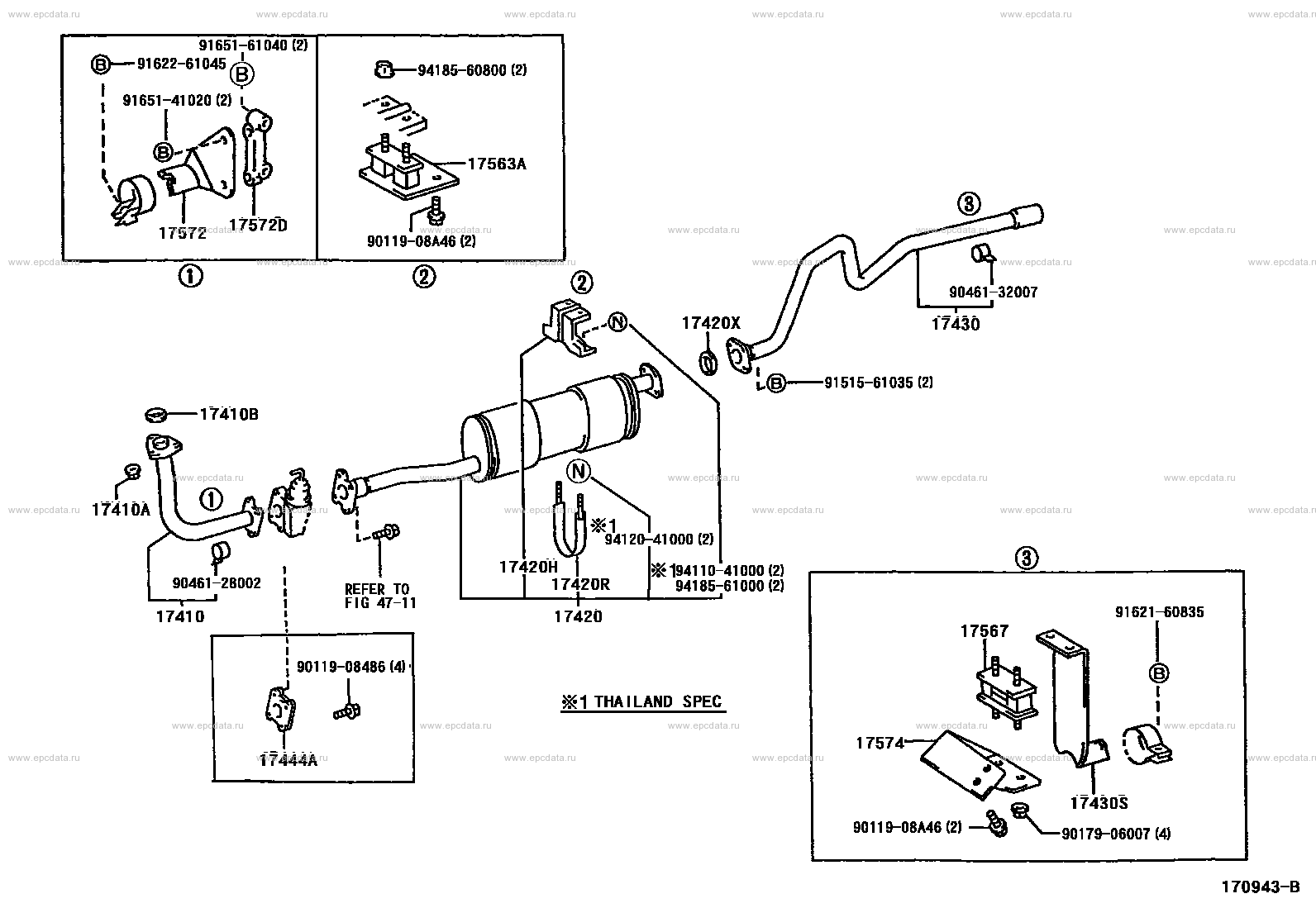

Click part number in the scheme or in the list:
9165161040 ** Std Part
9162261045 ** Std Part
9418560800 ** Std Part
9165141020 ** Std Part
17563A SUPPORT, EXHAUST PIPE, NO.3
17572D BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572 BRACKET, EXHAUST PIPE NO.1 SUPPORT
9011908A46 ** Std Part
9046132007 ** Std Part
17420X GASKET, EXHAUST PIPE (FOR CENTER)
17430 PIPE ASSY, EXHAUST, TAIL
9151561035 ** Std Part
17410B GASKET, EXHAUST PIPE
17410A NUT, EXHAUST PIPE SET STUD BOLT
9412041000 ** Std Part
17420H CLAMP, NO.1, EXHAUST PIPE CENTER (FOR CENTER)
9411041000 ** Std Part
9046128002 ** Std Part
17420R CLAMP, NO.2, EXHAUST PIPE CENTER (FOR CENTER)
9418561000 ** Std Part
** 47-11
9162160835 ** Std Part
17410 PIPE ASSY, EXHAUST, FRONT
17420 PIPE ASSY, EXHAUST, CENTER
17567 CUSHION, EXHAUST PIPE SUPPORT
9011908486 ** Std Part
17574 BRACKET, EXHAUST PIPE SUPPORT, NO.4
17444A SPACER, EXHAUST FRONT PIPE
17430S BRACKET, EXHAUST TAIL PIPE (FOR REAR)
9017906007 ** Std Part |
