Clutch master cylinder for Hilux RN22

Click on the part subgroup below to get genuine part numbers.

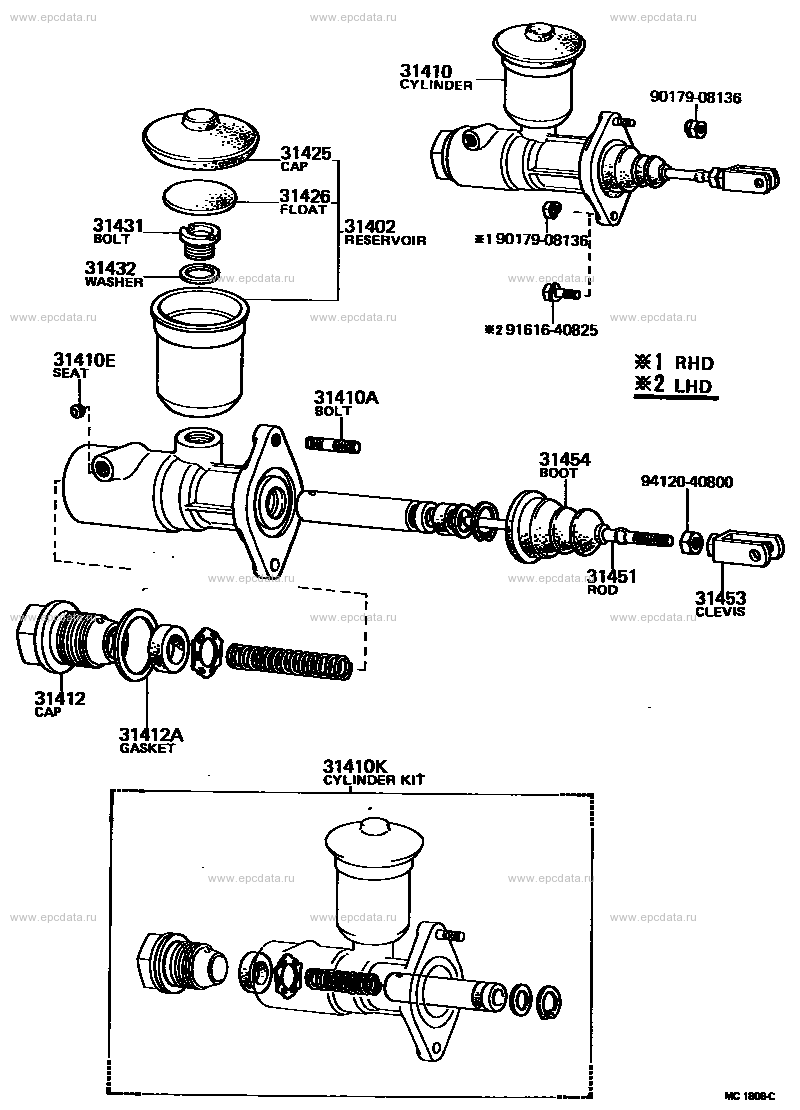

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 31410 CYLINDER ASSY, CLUTCH MASTER 9017908136 ** Std Part 31425 CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER 31426 FLOAT, CLUTCH MASTER CYLINDER RESERVOIR 31431 BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET 31402 RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER 31432 WASHER, CLUTCH RESERVOIR SET BOLT 9161640825 ** Std Part 31410E SEAT, UNION (FOR CLUTCH MASTER CYLINDER) 31410A BOLT (FOR CLUTCH MASTER CYLINDER SETTING) 31454 BOOT, CLUTCH MASTER CYLINDER 9412040800 ** Std Part 31451 ROD, CLUTCH MASTER CYLINDER PUSH 31453 CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD 31412 CAP, CLUTCH MASTER CYLINDER 31412A GASKET (FOR CLUTCH MASTER CYLINDER CAP) 31410K CYLINDER KIT, CLUTCH MASTER

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 31410 CYLINDER ASSY, CLUTCH MASTER 9017908136 ** Std Part 9161640825 ** Std Part 31410K CYLINDER KIT, CLUTCH MASTER 31425 CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER 31426 FLOAT, CLUTCH MASTER CYLINDER RESERVOIR 31431 BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET 31402 RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER 31432 WASHER, CLUTCH RESERVOIR SET BOLT 31410A BOLT (FOR CLUTCH MASTER CYLINDER SETTING) 31453 CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD 9412040800 ** Std Part 31451 ROD, CLUTCH MASTER CYLINDER PUSH 31410E SEAT, UNION (FOR CLUTCH MASTER CYLINDER) 31454 BOOT, CLUTCH MASTER CYLINDER

Hilux RN22
