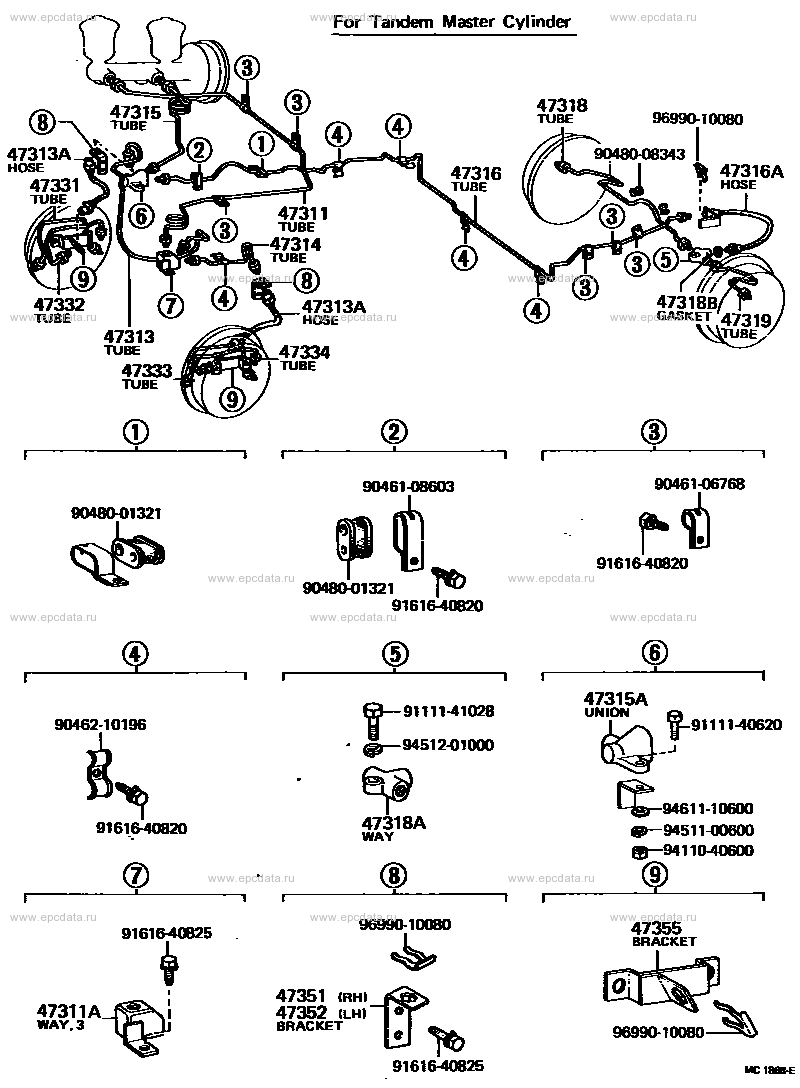

Click part number in the scheme or in the list:
47318 TUBE, FRONT BRAKE, NO.8
47315 TUBE, FRONT BRAKE, NO.5
9699010080 ** Std Part
47313A HOSE, FLEXIBLE, NO.1 (FOR FRONT)
9048008343 ** Std Part
47316A HOSE, FLEXIBLE (FOR REAR BRAKE TUBE)
47316 TUBE, FRONT BRAKE, NO.6
47331 TUBE, REAR BRAKE, NO.10
47311 TUBE, FRONT BRAKE, NO.1
47314 TUBE, FRONT BRAKE, NO.4
47318B GASKET (FOR REAR RH BRAKE TUBE)
47332 TUBE, REAR BRAKE, NO.11
47319 TUBE, FRONT BRAKE, NO.9
47313 TUBE, FRONT BRAKE, NO.3
47334 TUBE, REAR BRAKE, NO.13
47333 TUBE, REAR BRAKE, NO.12
9046106768 ** Std Part
9046108603 ** Std Part
9048001321 ** Std Part
9161640820 ** Std Part
47315A WAY OR UNION (FOR REAR BRAKE TUBE)
9111141028 ** Std Part
9111140620 ** Std Part
9046210196 ** Std Part
9451201000 ** Std Part
9461110600 ** Std Part
47318A WAY (FOR REAR RH BRAKE TUBE)
9451100600 ** Std Part
9411040600 ** Std Part
47355 BRACKET, FLEXIBLE HOSE, NO.2 (FOR FRONT)
9161640825 ** Std Part
47351 BRACKET, FLEXIBLE HOSE (FOR FRONT RH)
47311A WAY (FOR FRONT BRAKE TUBE)
47352 BRACKET, FLEXIBLE HOSE (FOR FRONT LH) |
