ToyotaLand CruiserHDJ100LHDJ100L-GNAEZWTransmission and chassisRear axle housing & differential

Rear axle housing & differential for Land Cruiser HDJ100L




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 41201
(IRRG)		 41201-80201 01 08.2002 - 09.2006 FINAL GEAR KIT, DIFFERENTIAL, REAR HDJ100..5F,5FC
*FGR=43:11=3.909		 664.94 USD
02 41201
(IRRG)		 41201-80202 01 08.2002 - 09.2006 FINAL GEAR KIT, DIFFERENTIAL, REAR HDJ100,UZJ100..ATM
*FGR=41:10=4.100		 664.94 USD
03 41201 41201-80492 01 09.2006 - 08.2007 FINAL GEAR KIT, DIFFERENTIAL, REAR HDJ100,UZJ100..5FC
*FGR=41:10=4.100		  610.03
to 664.06 USD
04 41201 41201-80496 01 09.2006 - 08.2007 FINAL GEAR KIT, DIFFERENTIAL, REAR HDJ100
*FGR=43:11=3.909		  664.06
to 928.56 USD

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3 Scheme 4

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Click part number in the scheme or in the list:

41201 FINAL GEAR KIT, DIFFERENTIAL, REAR
41110 CARRIER ASSY, DIFFERENTIAL, REAR
41301A BEARING (FOR REAR DIFFERENTIAL CASE)
41302A BOLT (FOR REAR DIFFERENTIAL CASE)
41315 NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41302 CASE SUB-ASSY, REAR DIFFERENTIAL
41201D WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41201A BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR)
41231 SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41204 FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41214 SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41252 DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
9161160814 ** Std Part
41351 WASHER, REAR DIFFERENTIAL PINION THRUST
41316 LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41222A BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41361 WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST NO.1
41341 PINION, REAR DIFFERENTIAL
41201B BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT)
41331 GEAR, REAR DIFFERENTIAL SIDE
41114 BOLT, REAR DIFFERENTIAL BEARING CAP
41201C SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41204G NUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41101 CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41371 SPIDER, REAR DIFFERENTIAL

Scheme 2

Click part number in the scheme or in the list:

41201 FINAL GEAR KIT, DIFFERENTIAL, REAR
41110 CARRIER ASSY, DIFFERENTIAL, REAR
41301A BEARING (FOR REAR DIFFERENTIAL CASE)
41302A BOLT (FOR REAR DIFFERENTIAL CASE)
41315 NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41302 CASE SUB-ASSY, REAR DIFFERENTIAL
41201D WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41201A BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR)
41231 SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41204 FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41316 LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41214 SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
9161160814 ** Std Part
41252 DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41351 WASHER, REAR DIFFERENTIAL PINION THRUST
41361 WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST NO.1
41341 PINION, REAR DIFFERENTIAL
41331 GEAR, REAR DIFFERENTIAL SIDE
41222A BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41387 RETAINER, SPRING, RH
41201B BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT)
41361A SHIM (FOR REAR DIFFERENTIAL SIDE GEAR THRUST)
41371 SPIDER, REAR DIFFERENTIAL
41114 BOLT, REAR DIFFERENTIAL BEARING CAP
41201C SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41385 PLATE, CLUTCH
41204G NUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41101 CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41465B SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINER)
41388 RETAINER, SPRING, LH

Scheme 3

Click part number in the scheme or in the list:

41110 CARRIER ASSY, DIFFERENTIAL, REAR
41101 CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41114 BOLT, REAR DIFFERENTIAL BEARING CAP
41201A BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR)
41201D WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41301B WASHER (FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)
41201C SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201B BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT)
41214 SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41252 DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41204 FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204G NUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41341 PINION, REAR DIFFERENTIAL
41351 WASHER, REAR DIFFERENTIAL PINION THRUST
41331 GEAR, REAR DIFFERENTIAL SIDE
41302 CASE SUB-ASSY, REAR DIFFERENTIAL
41301A BEARING (FOR REAR DIFFERENTIAL CASE)
41222A BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41343 PIN, REAR DIFFERENTIAL PINION SHAFT
41201 FINAL GEAR KIT, DIFFERENTIAL, REAR
41361 WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST NO.1
41342 SHAFT, REAR DIFFERENTIAL PINION
41375 HOLDER, REAR DIFFERENTIAL PINION SHAFT
41342M SHAFT, REAR DIFFERENTIAL PINION, NO.2
41231 SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41453 SLEEVE, REAR DIFFERENTIAL LOCK
41451 FORK, REAR DIFFERENTIAL LOCK SHIFT
41450 ACTUATOR, DIFFERENTIAL LOCK SHIFT
41456 COVER, REAR DIFFERENTIAL LOCK
41463B BOLT (FOR REAR DIFFERENTIAL LOCK SHIFT FORK SHAFT SET)
41507 TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER
41467 PROTECTOR, DIFFERENTIAL LOCK CYLINDER
41467A PROTECTOR, REAR DIFFERENTIAL LOCK ACTUATOR
91651B0820 ** Std Part
9010508328 ** Std Part
91651B0814 ** Std Part
9046400576 ** Std Part
9017908040 ** Std Part
9418461001 ** Std Part
9010910091 ** Std Part
** 84-01

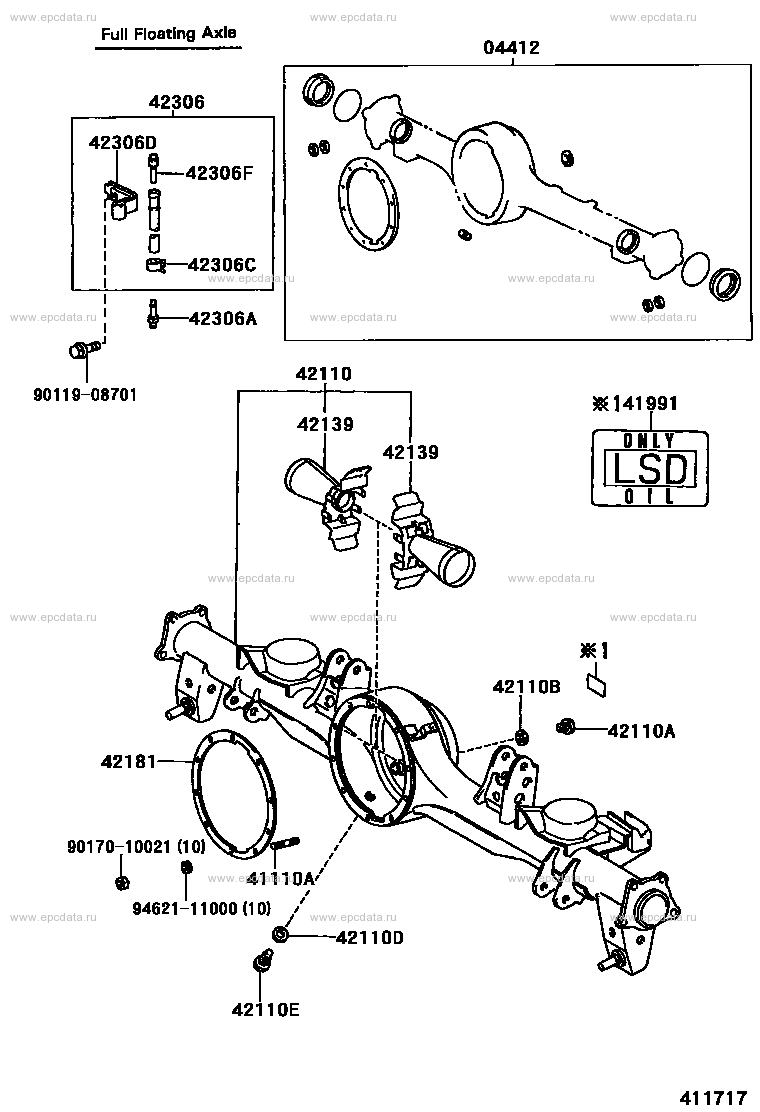

Scheme 4

Click part number in the scheme or in the list:

04412 GASKET KIT, REAR DIFFERENTIAL CARRIER
42306 HOSE SUB-ASSY, REAR AXLE BREATHER
42306D CLAMP (FOR REAR AXLE BRATHER HOSE)
42306F PLUG, BREATHER (FOR REAR AXLE)
42306C CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)
42306A UNION (FOR REAR AXLE BREATHER HOUSE)
42110 HOUSING ASSY, REAR AXLE
9011908701 ** Std Part
41991 CAUTION PLATE, REAR DIFFERENTIAL
42139 DEFLECTOR, REAR AXLE HOUSING OIL
42110B GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110A PLUG (FOR REAR AXLE HOUSING FILLER)
42181 GASKET, REAR DIFFERENTIAL CARRIER
9017010021 ** Std Part
41110A BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
9462111000 ** Std Part
42110D GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110E PLUG (FOR REAR AXLE HOUSING DRAIN)
