Brake booster & vacuum tube for Land Cruiser HDJ80L

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 44610 BOOSTER ASSY, BRAKE 44730 VALVE ASSY, VACUUM CHECK (FOR BRAKE) 44696 GROMMET, CHECK VALVE 47289 LABEL,BRAKE MASTER CYLINDER ADJUST INFORMATION 9017908038 ** Std Part 44785 GASKET, BRAKE BOOSTER 44758 BRACKET, VACUUM CHECK VALVE

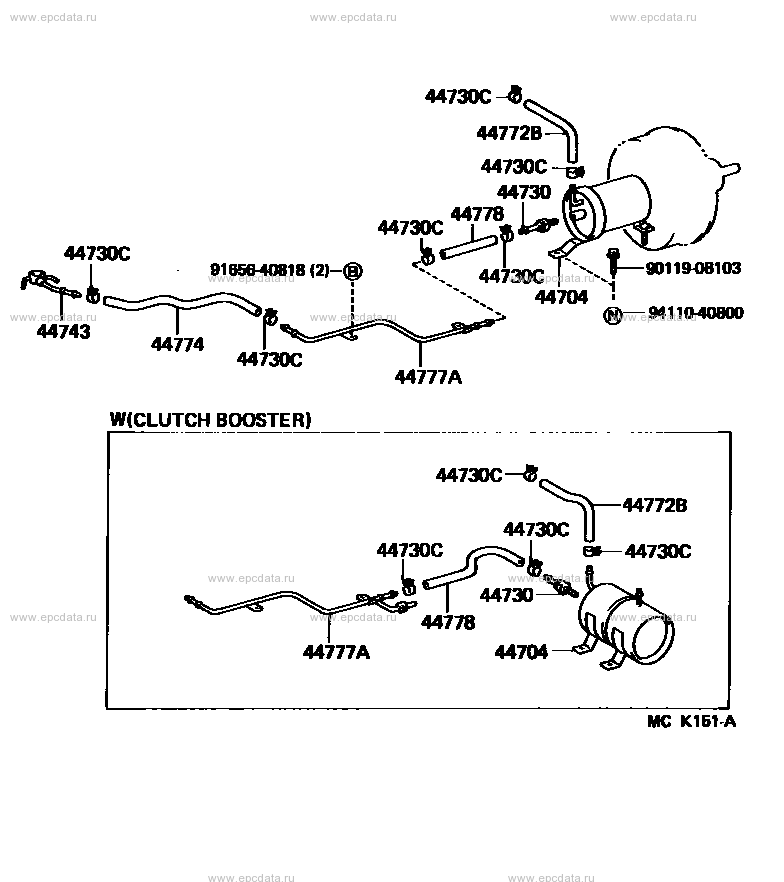

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 44730C CLIP (FOR VACUUM HOSE) 44772B HOSE, CHECK VALVE TO BRAKE BOOSTER 44730 VALVE ASSY, VACUUM CHECK (FOR BRAKE) 44778 HOSE, CONNECTOR TO CHECK VALVE 9165640818 ** Std Part 9011908103 ** Std Part 44704 RESERVOIR SUB-ASSY, VACUUM 9411040800 ** Std Part 44743 UNION (FOR VACUUM PUMP) 44774 HOSE, UNION TO CONNECTOR TUBE 44777A CONNECTOR, VACUUM HOSE, NO.2
