Power steering tube for Land Cruiser HDJ80L

Click on the part subgroup below to get genuine part numbers.

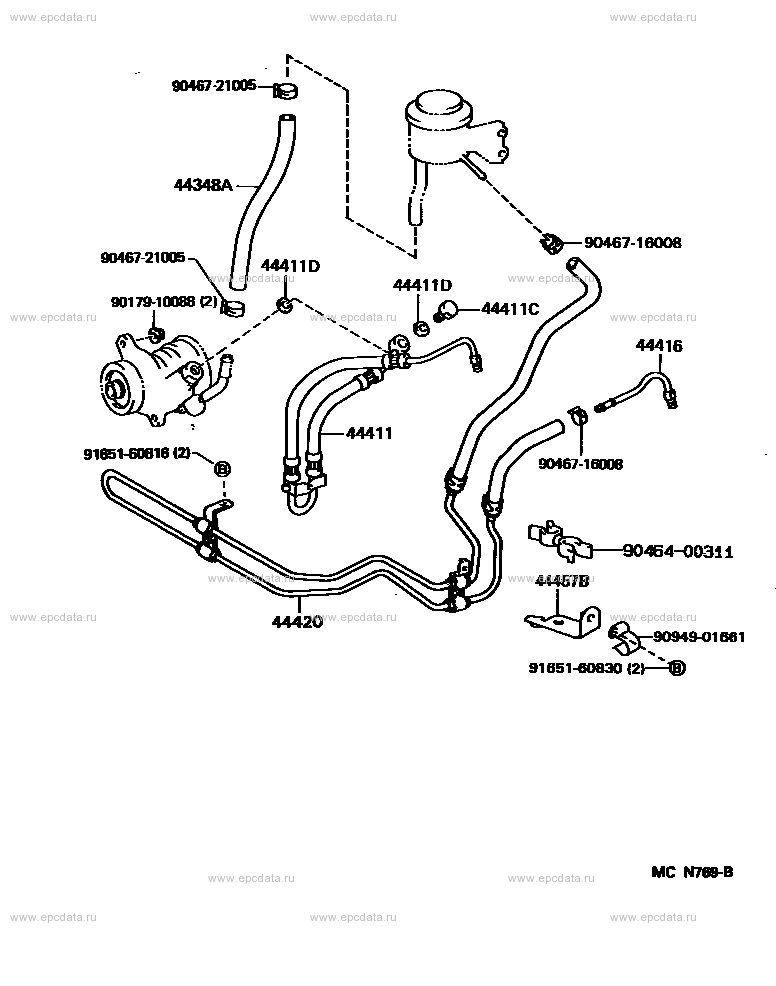

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9046721005 ** Std Part 44348A HOSE, OIL RESERVOIR TO PUMP, NO.1 9046716008 ** Std Part 44411D GASKET (FOR PRESSURE FEED HOSE) 9017910088 ** Std Part 44411C BOLT, UNION (FOR PRESSURE FEED HOSE) 44416 TUBE, RETURN (FOR STEERING GEAR OUTLET) 44411 HOSE, PRESSURE FEED 9165160816 ** Std Part 9046400311 ** Std Part 44457B BRACKET, POWER STEERING TUBE SUPPORT, NO.2 44420 COOLER ASSY, OIL 9094901661 ** Std Part 9165160830 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9040117002 ** Std Part 9040117001 ** Std Part 44411C BOLT, UNION (FOR PRESSURE FEED HOSE) 44411D GASKET (FOR PRESSURE FEED HOSE) 9046716008 ** Std Part 9046721005 ** Std Part 44411 HOSE, PRESSURE FEED 44348A HOSE, OIL RESERVOIR TO PUMP, NO.1 44416 TUBE, RETURN (FOR STEERING GEAR OUTLET) 9165160816 ** Std Part 44423G GASKET, UNION BOLT 9094901661 ** Std Part 44457B BRACKET, POWER STEERING TUBE SUPPORT, NO.2 44420 COOLER ASSY, OIL 9166160830 ** Std Part

Land Cruiser HDJ80L
