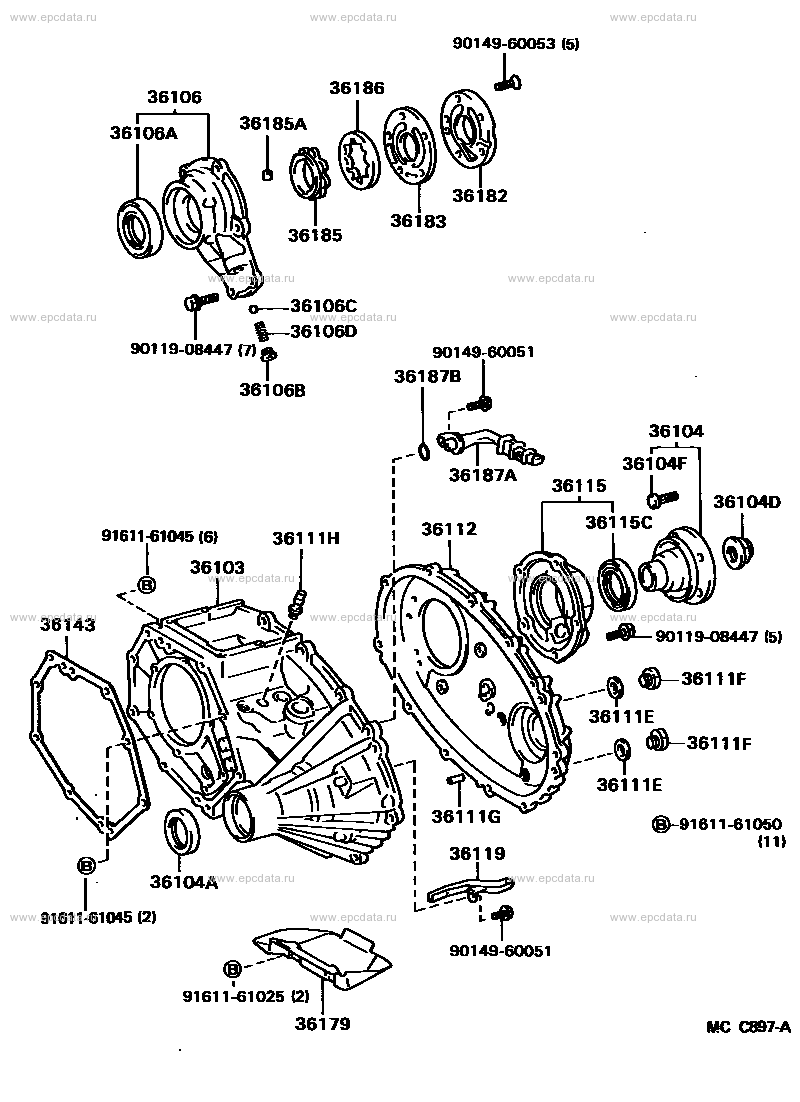

Click part number in the scheme or in the list:
9014960053 ** Std Part
36186 ROTOR, TRANSFER OIL PUMP DRIVEN
36106 BODY SUB-ASSY, TRANSFER OIL PUMP
36185A PIN, STRAIGHT (FOR TRANSFER OIL PUMP DRIVE POTOR)
36106A SEAL, OIL (FOR TRANSFER OIL PUMP BODY)
36182 COVER, TRANSFER OIL PUMP
36183 PLATE, TRANSFER OIL PUMP
36185 ROTOR, TRANSFER OIL PUMP DRIVE
36106C BALL (FOR TRANSFER OIL PUMP BODY)
36106D SPRING, COMPRESSION (FOR TRANSFER OIL PUMP BODY)
9011908447 ** Std Part
9014960051 ** Std Part
36187B RING, O (FOR TRANSFER OIL STRAINER)
36106B PLUG (FOR TRANSFER OIL PUMP BODY)
36104 FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)
36104F BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
36187A STRAINR, TRANSFER OIL, NO.1
36115 HOUSING, TRANSFER EXTENSION
36104D NUT (FOR TRANSFER OUTPUT SHAFT)
36115C SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36112 CASE, TRANSFER, REAR
9161161045 ** Std Part
36111H PLUG, BREATHER (FOR TRANSFER CASE)
36103 CASE SUB-ASSY, TRANSFER
36143 GASKET, TRANSFER CASE, FRONT
36111F PLUG (FOR TRANSFER CASE)
36111E GASKET (FOR TRANSFER CASE)
36111G PIN, STRAIGHT (FOR TRANSFER CASE)
9161161050 ** Std Part
36119 RECEIVER, TRANSFER OIL, NO.1
36104A SEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)
9161161025 ** Std Part
36179 PROTECTOR, TRANSFER CASE LOWER |
