Rear combination lamp for Picnic CXM10R

Click on the part subgroup below to get genuine part numbers.

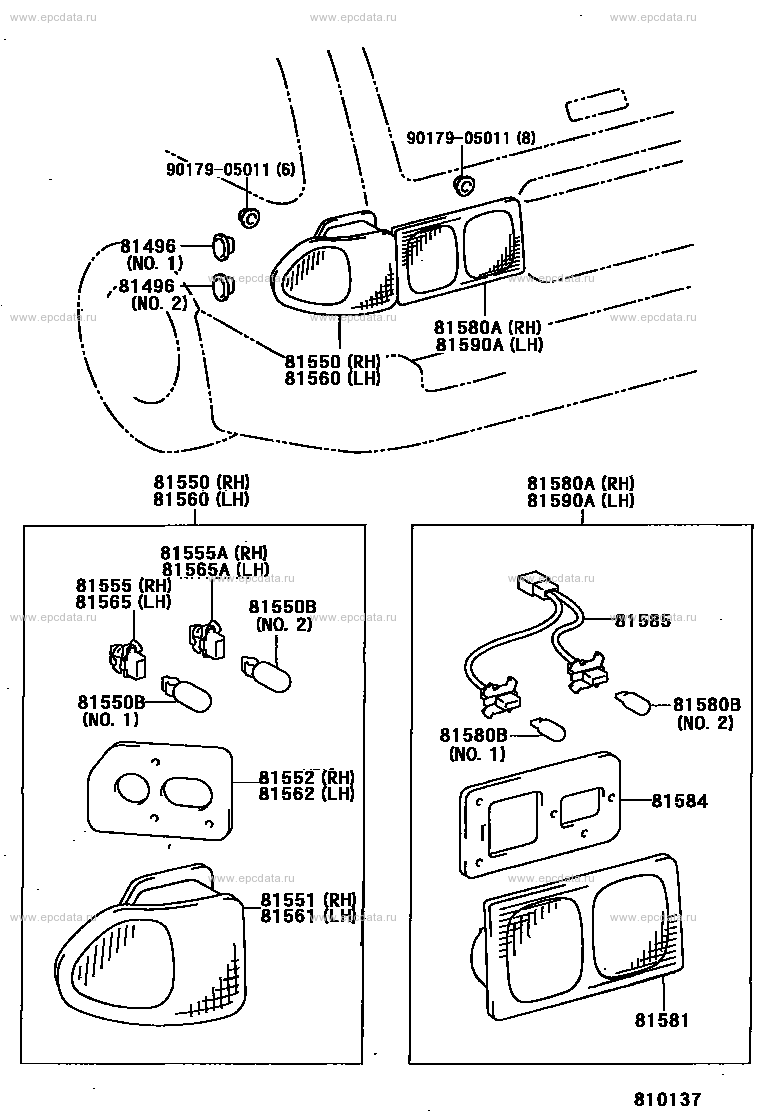

Open full size scheme

Click part number in the scheme or in the list: 9017905011 ** Std Part 81496 GUIDE, REAR COMBINATION LAMP 81580A LAMP ASSY, REAR 81590A LAMP ASSY, REAR, LH 81550 LAMP ASSY, REAR COMBINATION, RH 81560 LAMP ASSY, REAR COMBINATION, LH 81555A SOCKET AND WIRE SUB-ASSY, REAR COMBINATION LAMP, RH 81565A SOCKET AND WIRE SUB-ASSY, REAR COMBINATION LAMP, LH 81555 SOCKET AND WIRE SUB-ASSY, REAR COMBINATION LAMP, RH 81565 SOCKET AND WIRE SUB-ASSY, REAR COMBINATION LAMP, LH 81550B BULB (FOR REAR COMBINATION LAMP) 81585 SOCKET AND WIRE, REAR LAMP 81580B BULB (FOR REAR LAMP) 81552 GASKET, REAR COMBINATION LAMP LENS, RH 81562 GASKET, REAR COMBINATION LAMP LENS, LH 81584 GASKET, REAR LAMP RH 81551 LENS, REAR COMBINATION LAMP, RH 81561 LENS, REAR COMBINATION LAMP, LH 81581 LENS, REAR LAMP

Picnic CXM10R
