Switch & relay for Previa / Tarago ACR50R
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

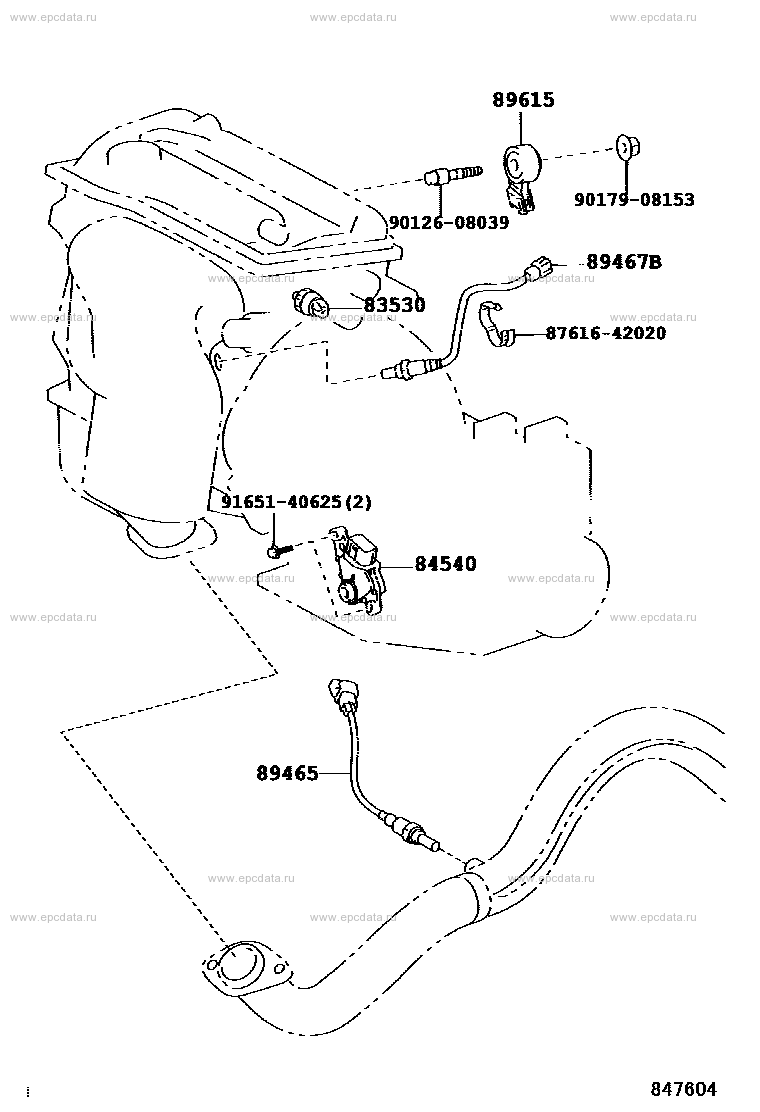

Scheme 1
|
Click part number in the scheme or in the list: 89467B SENSOR, AIR FUEL RATIO89615 SENSOR, KNOCK CONTROL 9012608039 ** Std Part 9017908153 ** Std Part 89465 SENSOR, OXYGEN 83530 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 9165140625 ** Std Part 84540 SWITCH ASSY, NEUTRAL START 8761642020 ** Std Part |
Scheme 2
Scheme 3
Scheme 4
|
Click part number in the scheme or in the list: ** 84-17** 83-02 84975 SWITCH, TRIP 84751 SWITCH, SEAT HEATER 84870A SWITCH ASSY, OUTER MIRROR 84150D SWITCH ASSY, HEADLAMP CLEANER 84155 SWITCH, HEADLAMP SWIVEL MAIN 84152 SWITCH, HEADLAMP LEVELING 84962 SWITCH, POWER SLIDE DOOR MAIN 85533 LENS, CIGARETTE LIGHTER INDICATOR 85513 COVER, CIGARETTE LIGHTER 85520 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85500 LIGHTER ASSY, CIGARETTE |

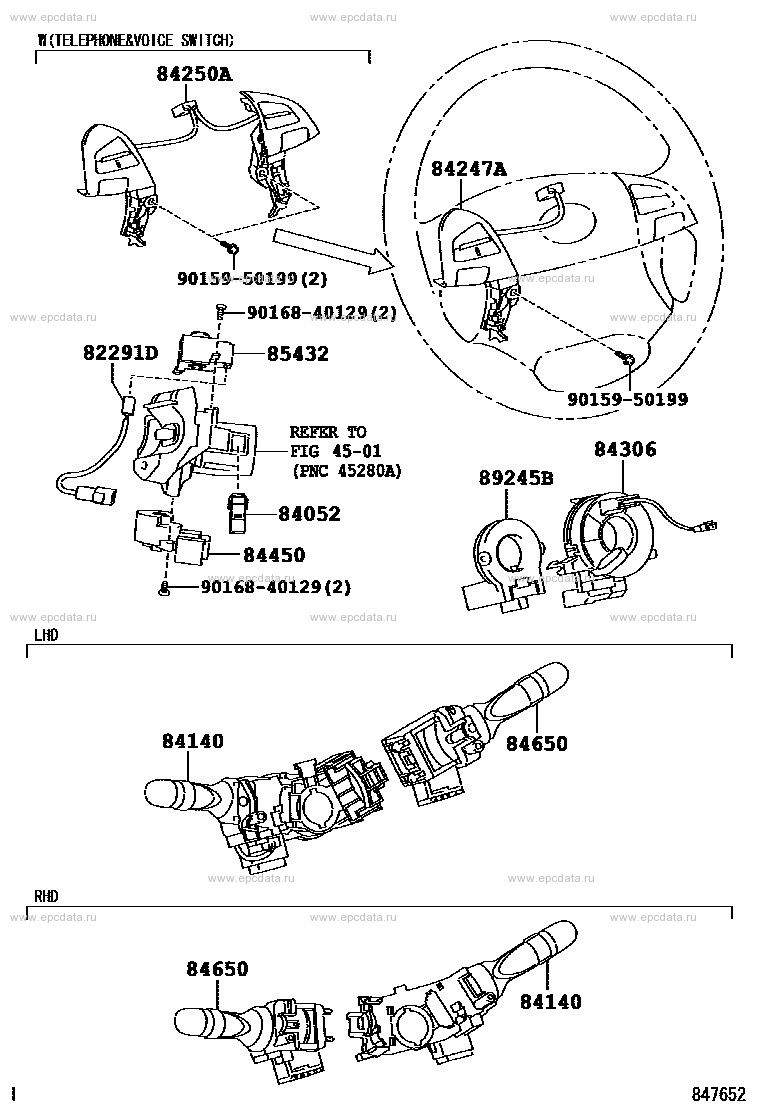

Scheme 5
|
Click part number in the scheme or in the list: 84140 SWITCH ASSY, HEADLAMP DIMMER84650 SWITCH ASSY, WINDSHIELD WIPER 84306 CABLE SUB-ASSY, SPIRAL 89245B SENSOR, STEERING 84247A SWITCH, STEERING PAD, LH 82291D WIRE, TO SOLENOID 84450 SWITCH ASSY, IGNITION OR STARTER 85432 SOLENOID, KEY INTER LOCK 84052 SWITCH ASSY, UN-LOCK WARNING 9016840129 ** Std Part ** 45-01 9015950199 ** Std Part 84250A SWITCH ASSY, STEERING PAD |

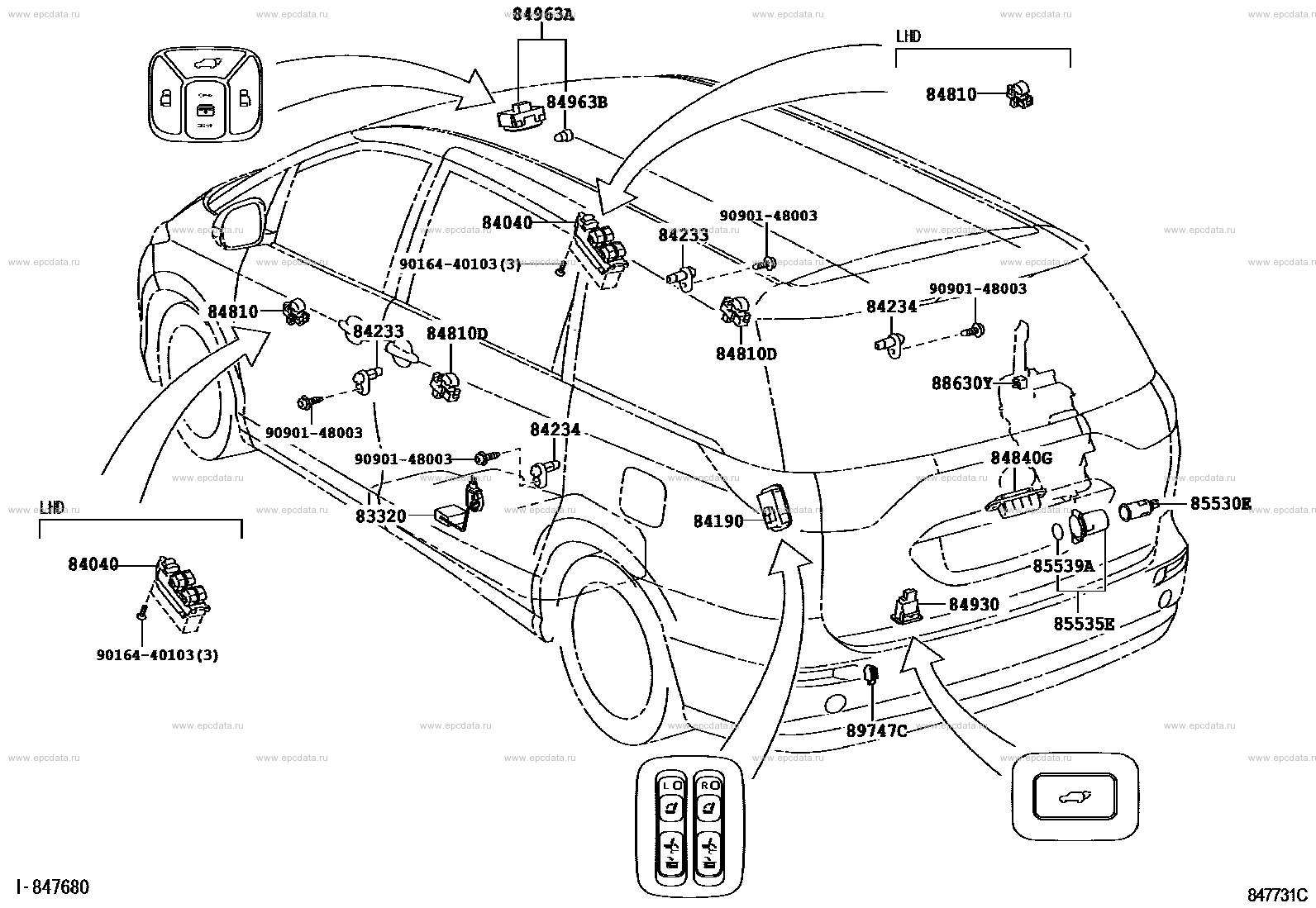

Scheme 6
|
Click part number in the scheme or in the list: 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)9090148003 ** Std Part 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 83320 GAGE ASSY, FUEL SENDER 84190 SWITCH ASSY, FOLD SEAT 84930 SWITCH ASSY, DOOR CONTROL 84963A SWITCH, POWER SLIDE DOOR CONTROL, NO.2 85530E SOCKET ASSY, POWER OUTLET 84840G SWITCH ASSY, BACK DOOR OPENER 88630Y RELAY, REAR COOLER 85539A LABEL, POWER OUTLET NOTICE, RR 85535E COVER, POWER OUTLET SOCKET 84040 MASTER SWITCH ASSY,MULTIPLEX NETWORK 9016440103 ** Std Part 84810 SWITCH ASSY, POWER WINDOW REGULATOR 84810D SWITCH ASSY, POWER WINDOW REGULATOR, REAR 89747C BUZZER, POWER SLIDE BACK DOOR WARNING 84963B BULB, POWER SLIDE CONTROL SWITCH, NO.1 |
