Wiring & clamp for Corolla Verso AUR10R
|
Here are parts you've selected:
| ||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|

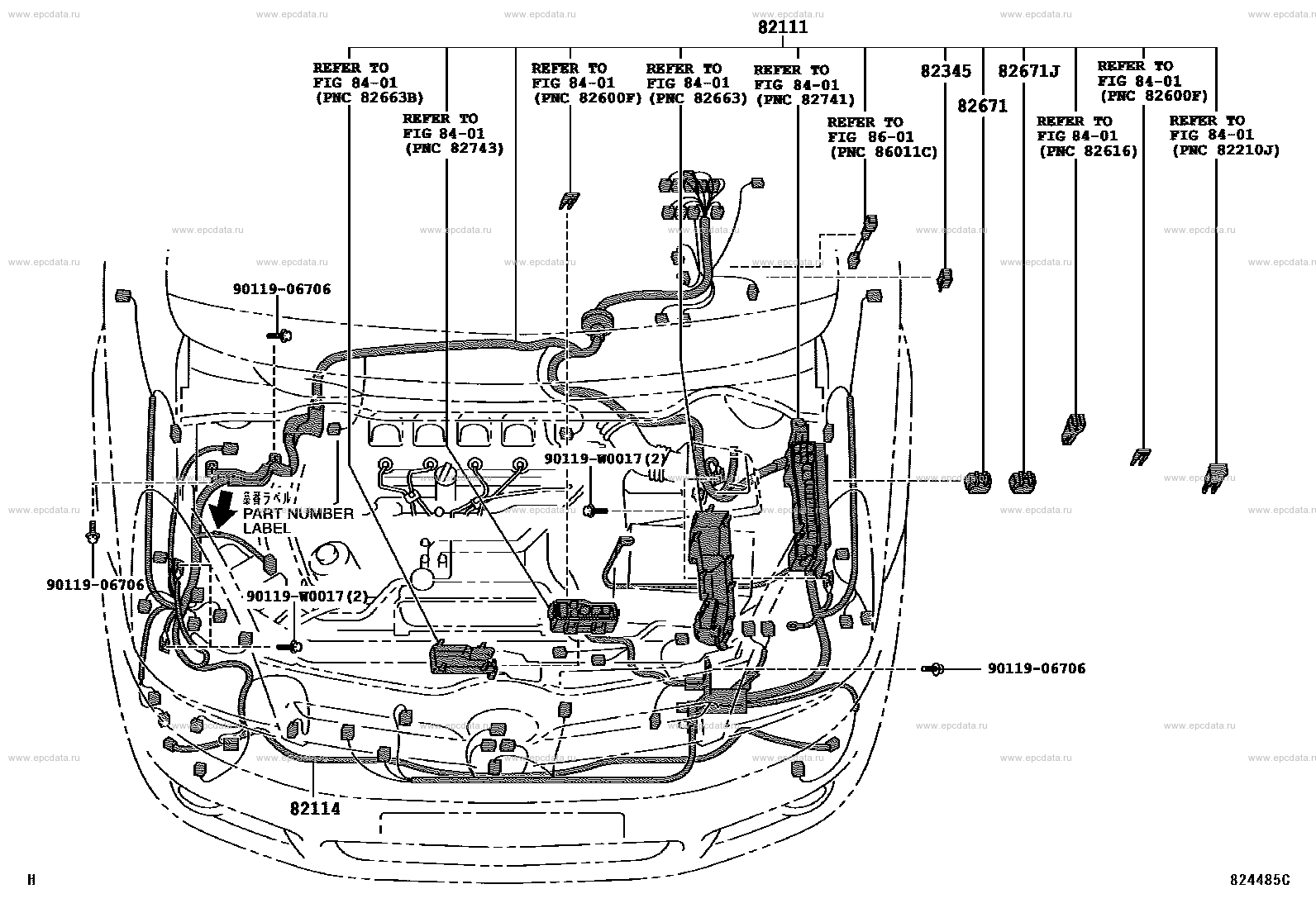

Click part number in the scheme or in the list: 9011906706 ** Std Part90119W0017 ** Std Part 82114 WIRE, ENGINE ROOM, NO.4 82111 WIRE, ENGINE ROOM MAIN 82671 BLOCK, JUNCTION 82345 DIODE 82671J BLOCK, JUNCTION, NO.2 ** 86-01 ** 84-01 |
Scheme 2
|
Click part number in the scheme or in the list: 82121 WIRE, ENGINE82122 WIRE, ENGINE, NO.2 82823 CAP, TERMINAL, NO.1 82823A CAP, TERMINAL, NO.2 9011606127 ** Std Part 90119W0017 ** Std Part 90119W0027 ** Std Part 9164380614 ** Std Part 90119W0059 ** Std Part 90119W0019 ** Std Part 9415080640 ** Std Part 90178W0019 ** Std Part ** 84-01 |
Scheme 3
|
Click part number in the scheme or in the list: 82824E CONNECTOR, WIRING HARNESS82670 BLOCK ASSY, JUNCTION, NO.1 82666A HOLDER, CONNECTOR NO.2 82666C HOLDER, CONNECTOR NO.4 82671K BLOCK, JUNCTION, NO.3 82141 WIRE, INSTRUMENT PANEL 9017906274 ** Std Part 90119W0017 ** Std Part 82143 WIRE, INSTRUMENT PANEL, NO.3 9015970003 ** Std Part 9015960545 ** Std Part 82223 WIRE, SWITCH ** 84-01 |
Scheme 4
|
Click part number in the scheme or in the list: 828190F020 ** Std Part82188A WIRE, BACK DOOR, NO.3 82153 WIRE, REAR DOOR, NO.1 90119W0017 ** Std Part 82185 WIRE, BACK DOOR, NO.2 82154 WIRE, REAR DOOR, NO.2 82184 WIRE, BACK DOOR, NO.1 82152 WIRE, FRONT DOOR, LH 828190F010 ** Std Part 82151 WIRE, FRONT DOOR, RH |
Scheme 5
|

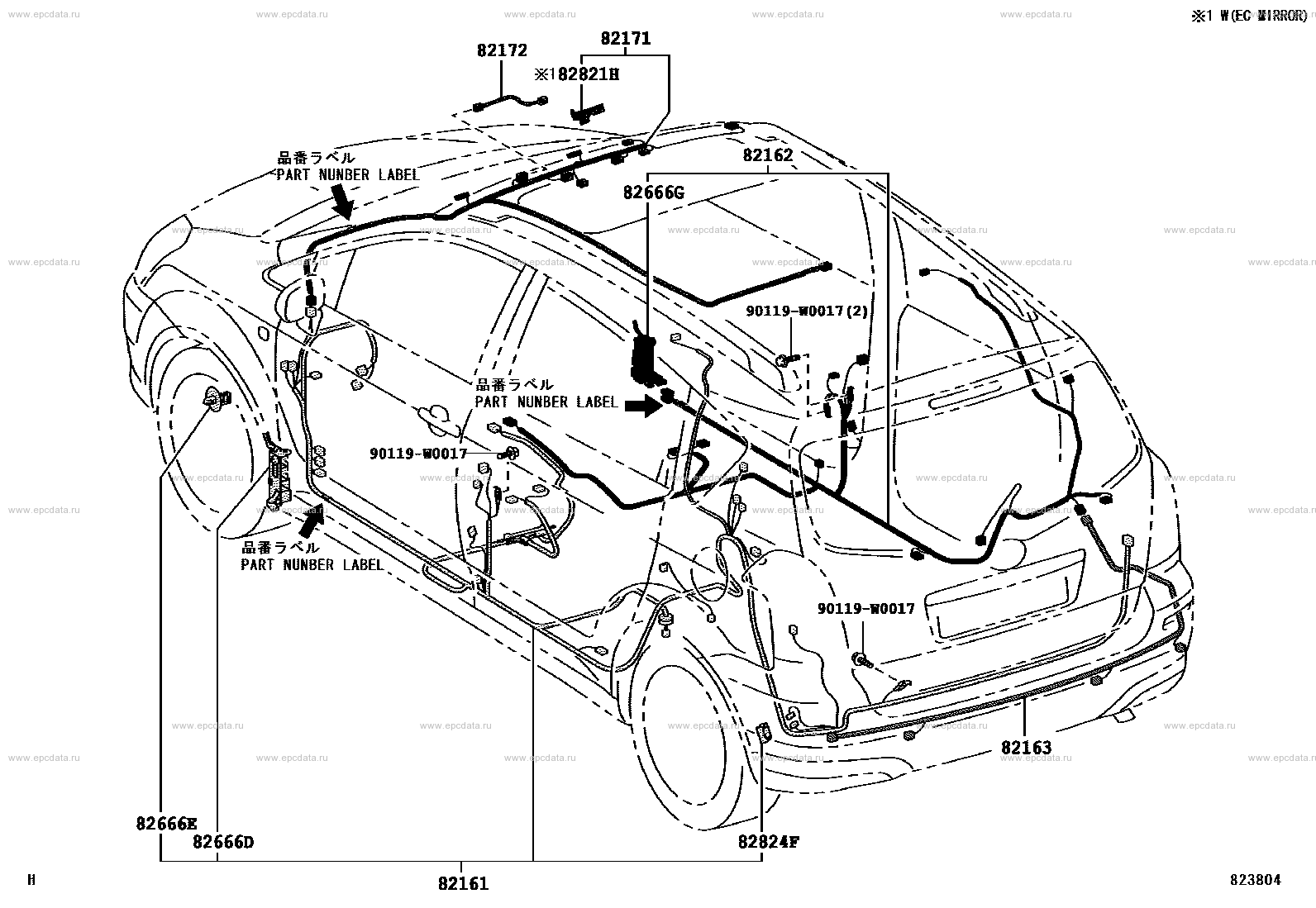

Click part number in the scheme or in the list: 82163 WIRE, FLOOR, NO.390119W0017 ** Std Part 82666G HOLDER, CONNECTOR NO.8 82162 WIRE, FLOOR, NO.2 82172 WIRE, ROOF, NO.2 82821H COVER, CONNECTOR 82171 WIRE, ROOF, NO.1 82666E HOLDER, CONNECTOR NO.6 82666D HOLDER, CONNECTOR NO.5 82824F CONNECTOR, WIRING HARNESS 82161 WIRE, FLOOR |
Scheme 6
Scheme 7
Scheme 8
