Fuel tank & tube for Land Cruiser HZJ79L

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01   96132-41500        1.00 to 1.16 USD

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9613230600 ** Std Part 9161160816 ** Std Part 9046112373 ** Std Part 77701U HOSE, FUEL (FOR CHECK VALVE) 77701T VALVE, CHECK (FOR MAIN FUEL TANK) 77100A PLUG (FOR FUEL TANK) 77100B GASKET (FOR FUEL TANK) 77278A HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 9040506007 ** Std Part 77611 BAND, FUEL TANK 77631 BRACKET, FUEL TANK, NO.1 9161161020 ** Std Part 9011910153 ** Std Part 77606 PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611A PIN (FOR FUEL TANK BAND) 77632 BRACKET, FUEL TANK, NO.2 9046814022 ** Std Part 77308A CUSHION (FOR FUEL INLET BOX COVER) 77201 PIPE SUB-ASSY, FUEL TANK INLET 77100D HOSE, FUEL, NO.1 (FOR FUEL TANK) 9046720134 ** Std Part 77206 TUBE SUB-ASSY, FUEL TANK SUCTION 77213 HOSE, FUEL TANK SUB INLET 77206A GASKET (FOR FUEL TANK SUCTION TUBE) 9046065002 ** Std Part 9015940155 ** Std Part 9011906347 ** Std Part 77179A GASKET, FUEL TANK BREATHER TUBE 77380 VALVE ASSY, FUEL CUT OFF 9017905042 ** Std Part 77022A HOSE, FUEL (FOR FUEL EVAPORATIVE SEPARATOR) 77420 VALVE ASSY, FUEL CUT OFF, NO.2 77366 SPRING, FUEL FILLER OPENING LID HINGE 77277R PROTECTOR, FUEL TANK FILLER PIPE 77023 FILTER SUB-ASSY, FUEL SUCTION TUBE ** 84-01 77100 TANK ASSY, FUEL 77110 TANK ASSY, AUXILIARY FUEL 9011906195 ** Std Part 77291 PACKING, FUEL TANK SUPPORT, UPPER 77031 CAP ASSY, FUEL TANK 77031B GASKET (FOR FUEL TANK CAP) 77305A LID SUB-ASSY, FUEL FILLER OPENING 77026A TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 9338515014 ** Std Part 9015950219 ** Std Part 77011 PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77178 GASKET, FUEL TANK FILLER PIPE, LOWER 77017B TUBE SUB-ASSY, FUEL TANK VENT 9162640818 ** Std Part 9046814017 ** Std Part 93383A6014 ** Std Part 9338216014 ** Std Part 9338316014 ** Std Part 91611B0816 ** Std Part

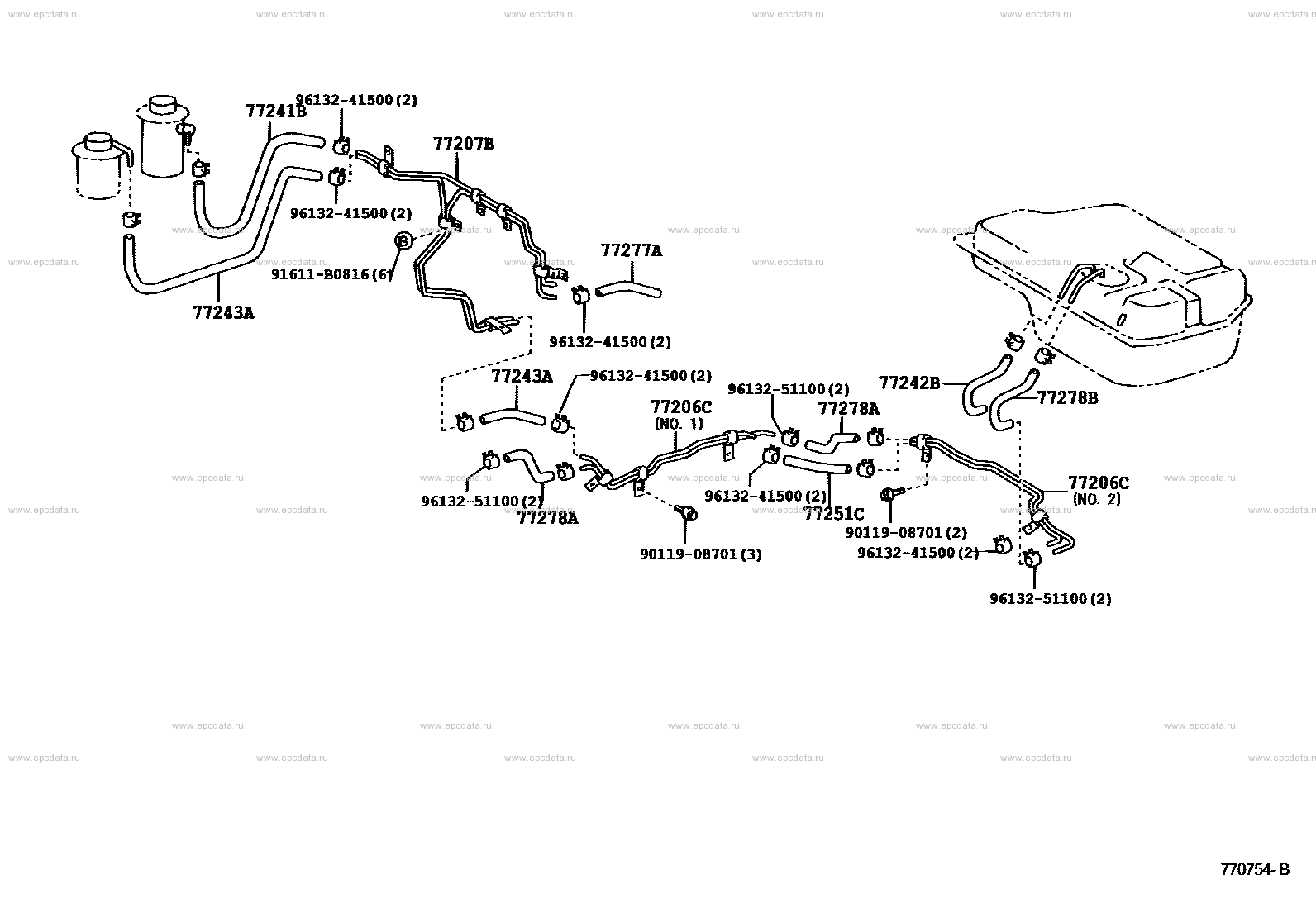

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 77241B HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77243A HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) 9613241500 ** Std Part 77207B TUBE SUB-ASSY, FUEL MAIN, NO.3 91611B0816 ** Std Part 77206C TUBE SUB-ASSY, FUEL MAIN, NO.2 9613251100 ** Std Part 77278A HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77251C HOSE, FUEL, NO.1 (FOR FUEL MAIN TUBE) 77242B HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 9011908701 ** Std Part 77278B HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) 77277A HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.1)
